Archery Bow T-Square Measurement Tool for Shooting Setup

Precision T-Square Bow Tuning Tool | Essential for Recurve & Longbow Setup

Achieve perfect bow tuning and consistent accuracy with this essential Precision T-Square. Specifically designed for archery, this bright orange tool is your all-in-one solution for measuring critical setup parameters. It enables precise brace height measurement, accurate nocking point placement, and limb alignment checks—fundamental steps for optimizing arrow flight and bow performance. Crafted from durable, lightweight plastic, it's an indispensable and portable aid for every archer's toolkit, from beginners learning to tune to experienced shooters maintaining peak setup.

What's in the package?
1 x Plastic T-Square (Orange)
(Note: Nocking points, serving thread, or other accessories shown in illustrative photos are not included.)

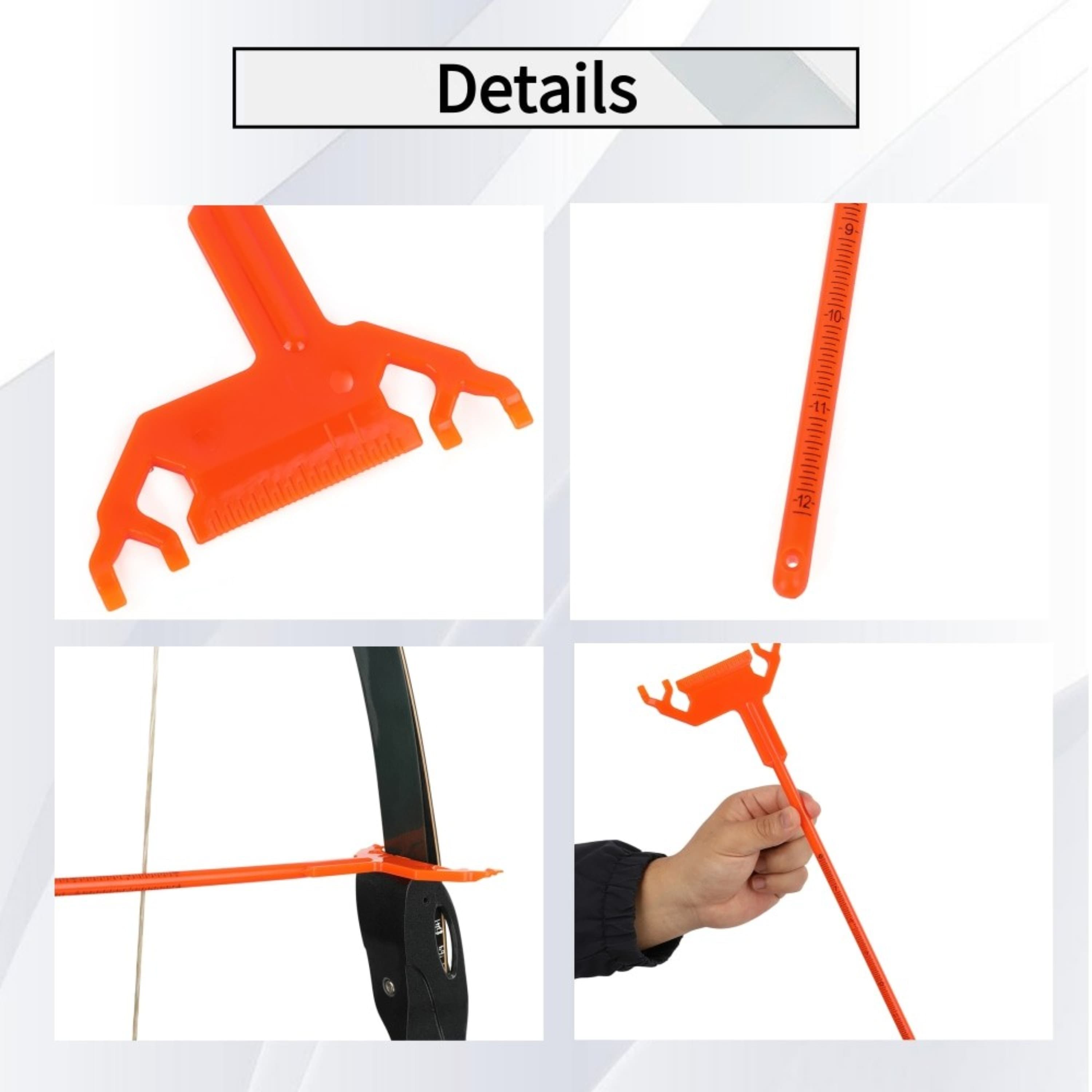

Key Features:

• Multi-Function Tuning Essential: A single tool performs three critical tuning tasks: measuring brace height, setting the nocking point height, and checking limb alignment, ensuring your bow is set up for optimal performance.

• Clear, Accurate Measurement Scale: Features easy-to-read, precise graduations along the ruler arm, allowing for straightforward and reliable measurements during the setup process.

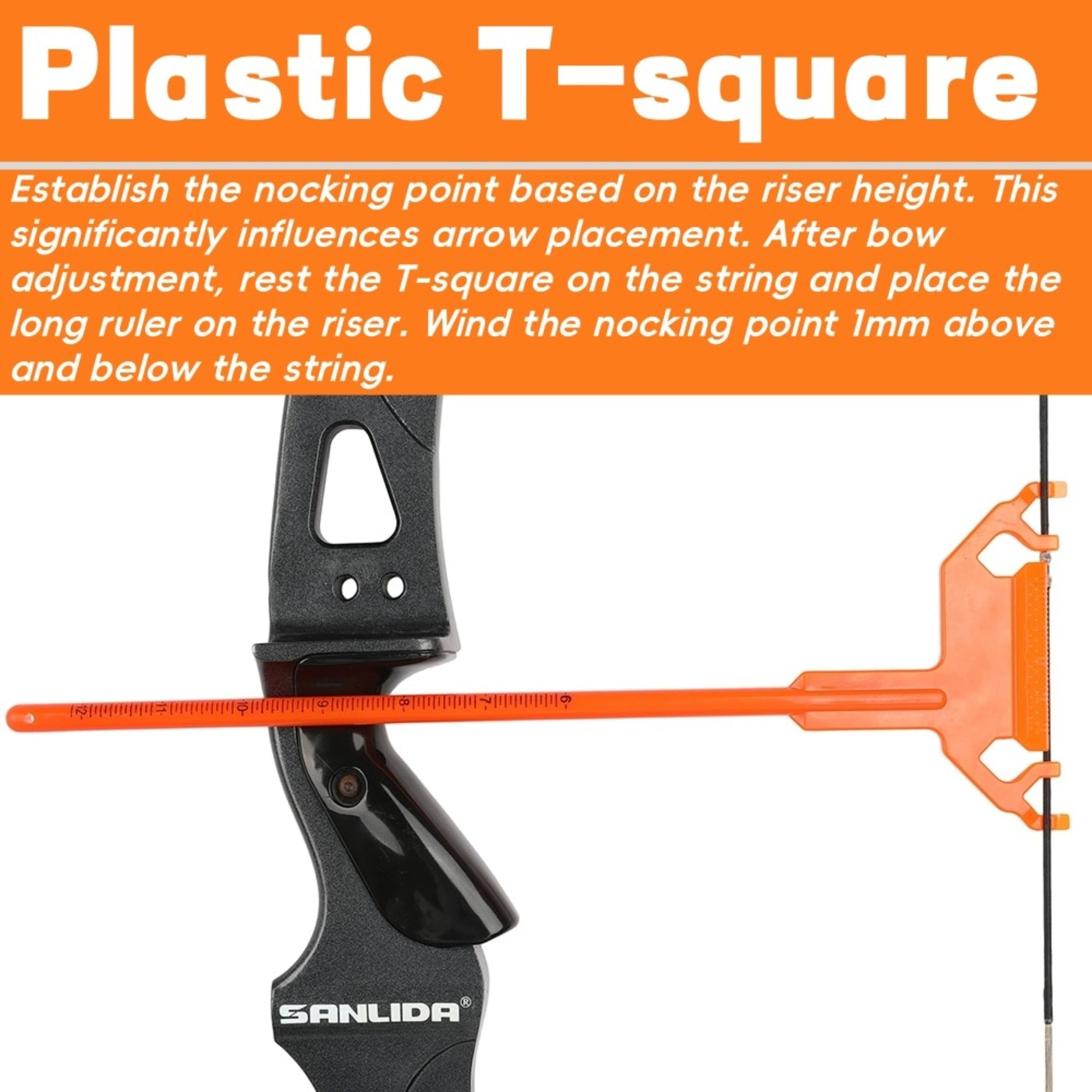

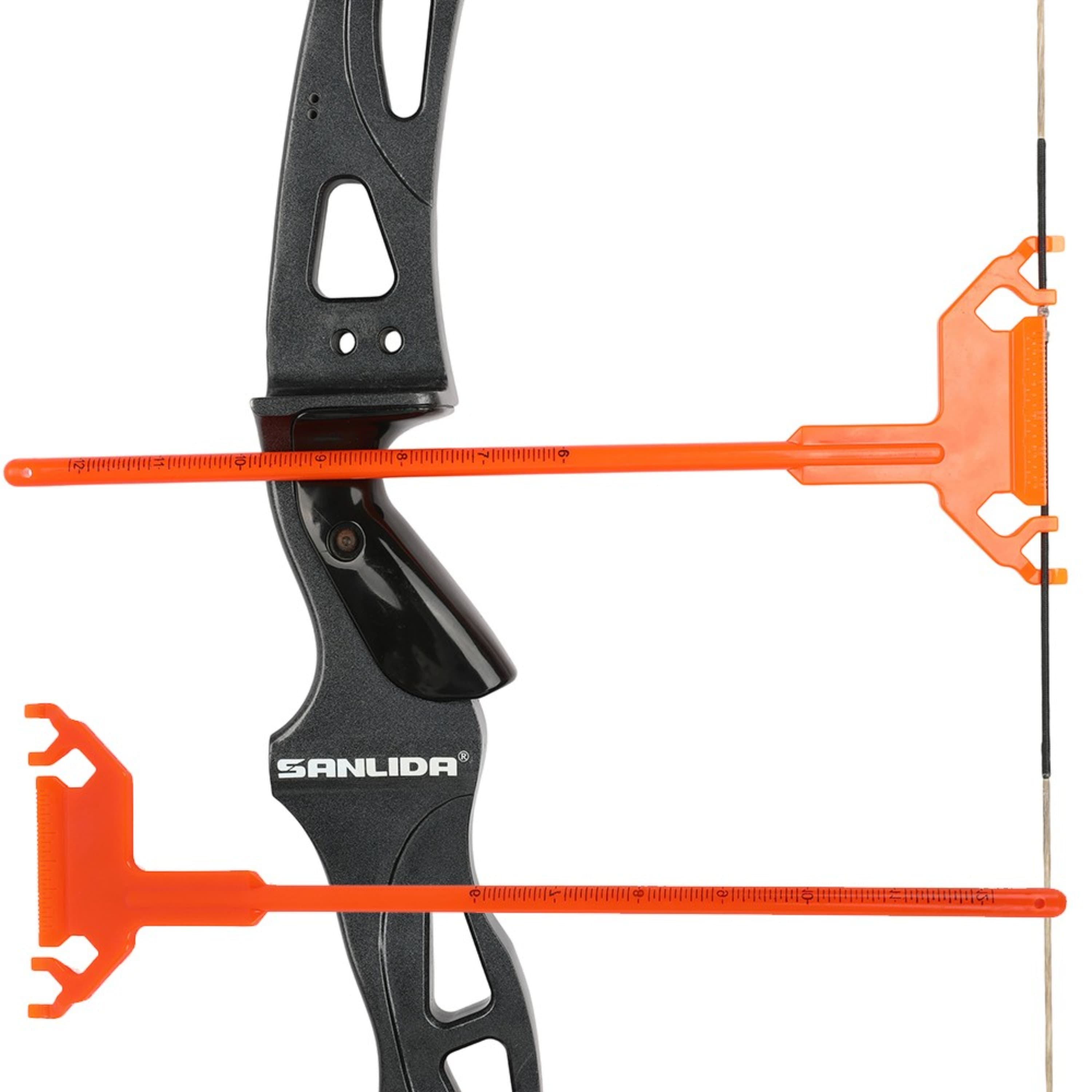

• Simplifies Nocking Point Setup: The crossbar rests securely against the bow's riser shelf, providing a consistent reference plane to mark the exact position on the string for installing your brass or tied nocking points.

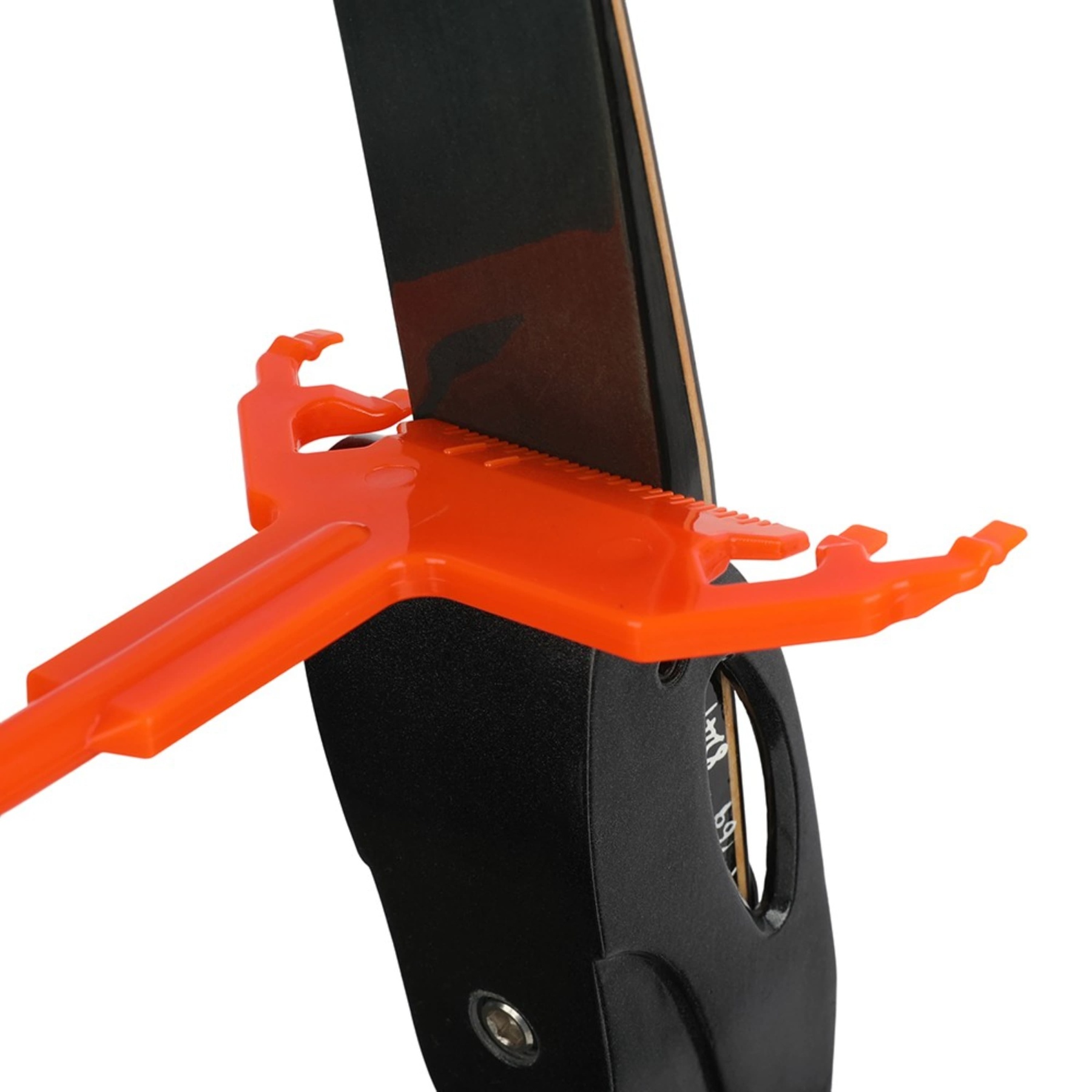

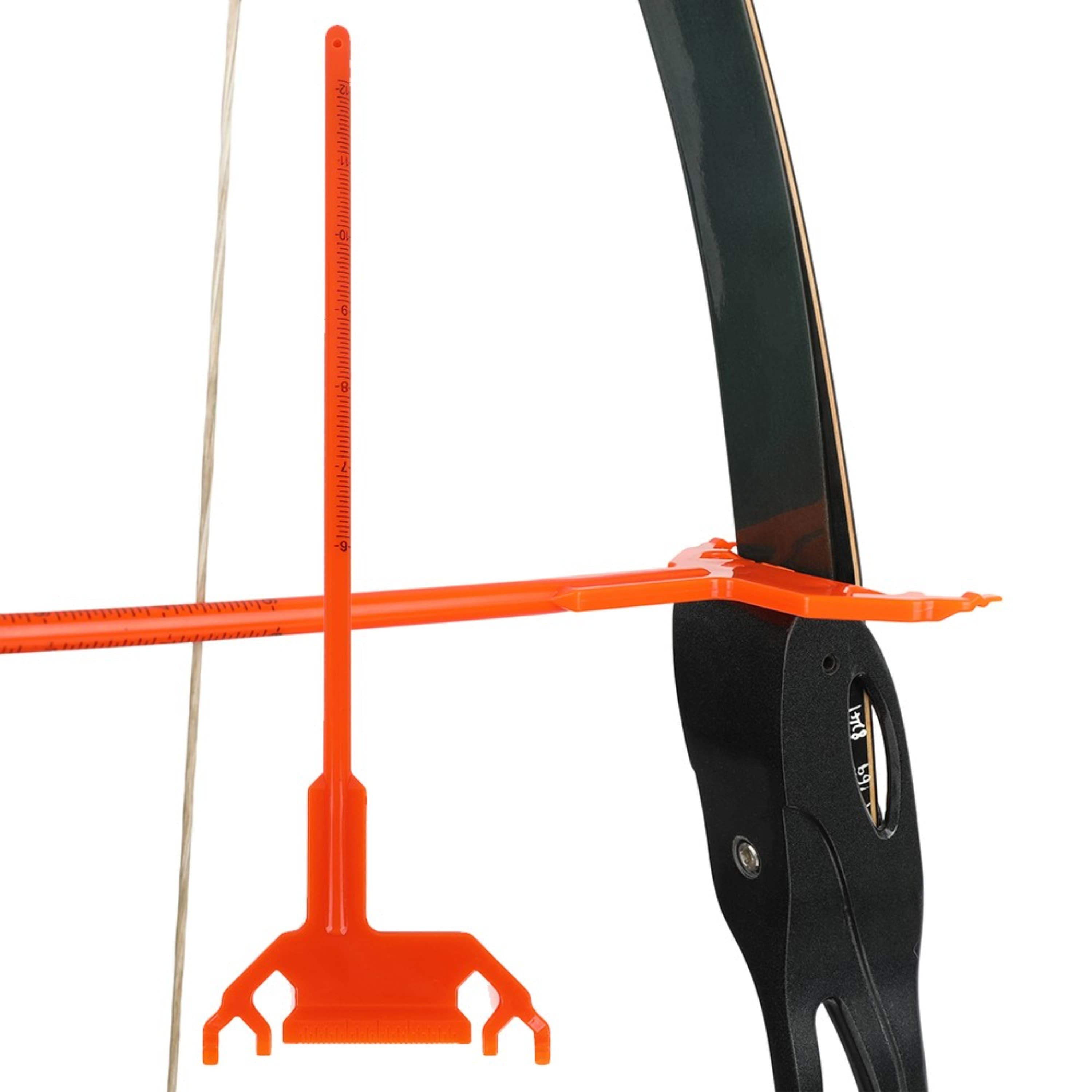

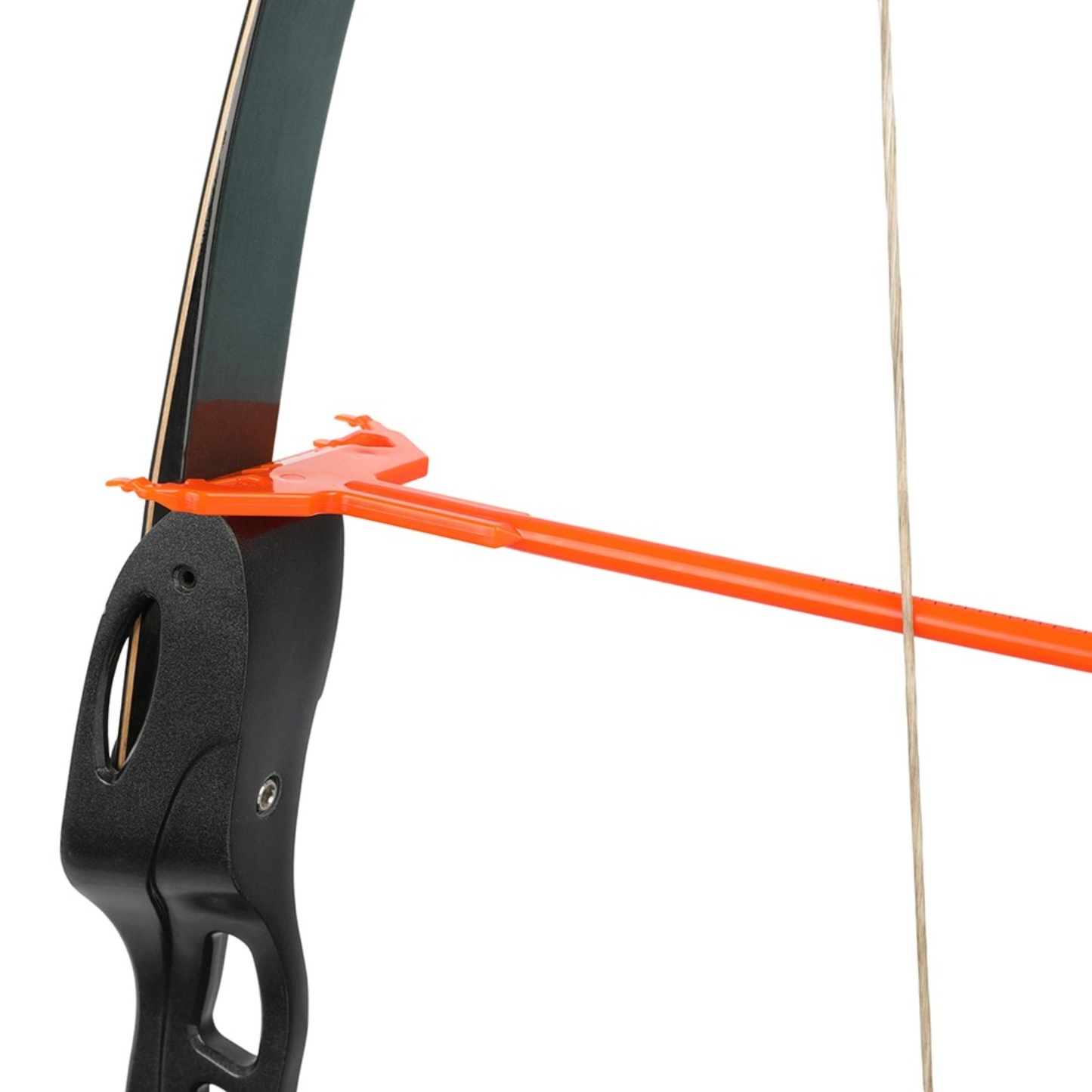

• Ensures Proper Bow Geometry: Allows you to verify and adjust tiller (the difference in distance between the string and each limb) to achieve proper limb balance and bow symmetry for a clean release.

• Lightweight & Durable Design: Made from robust plastic, it weighs only 37 grams for ultimate portability. Its simple, reliable construction makes it a long-lasting tool for range use, field tuning, or travel.

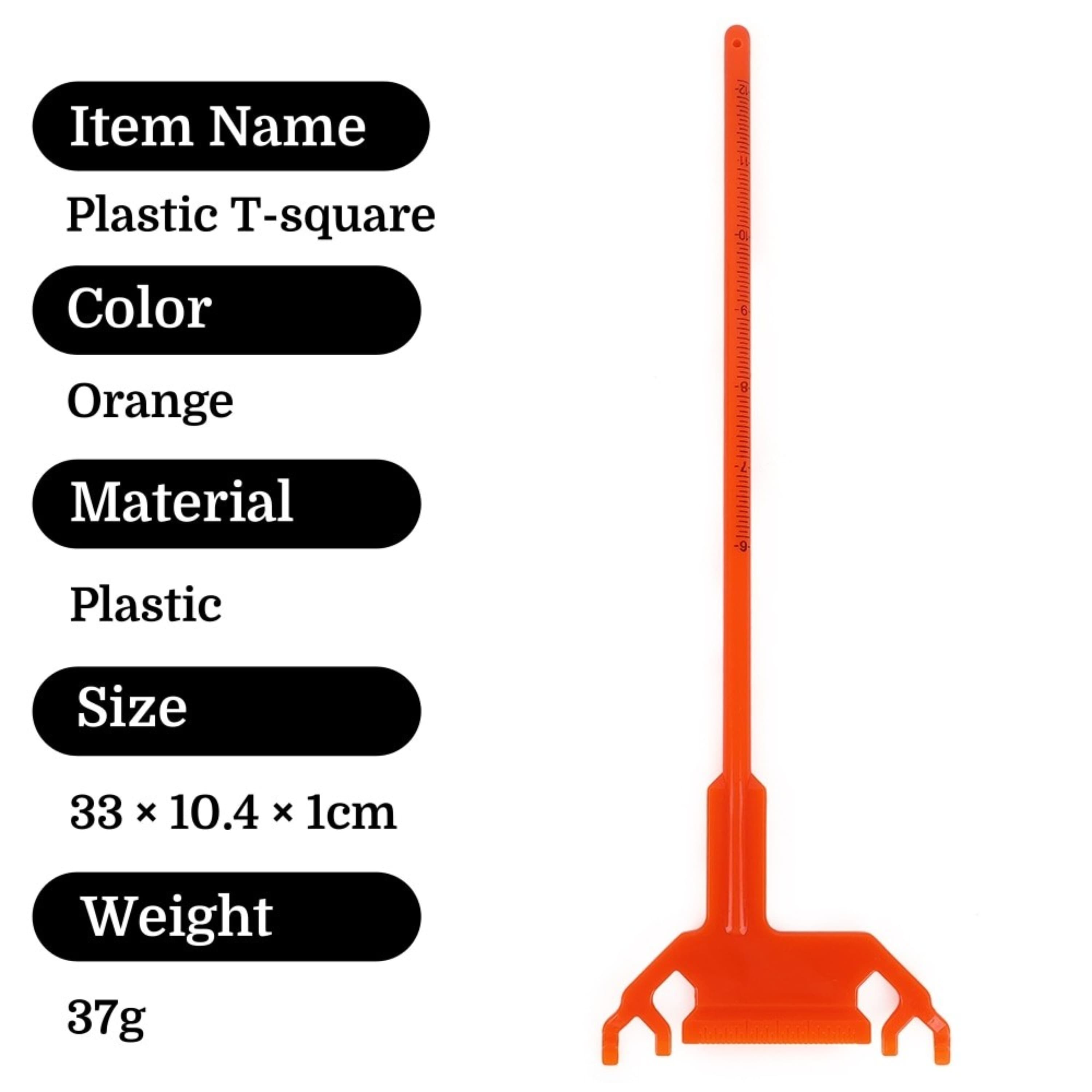

Technical Specifications:

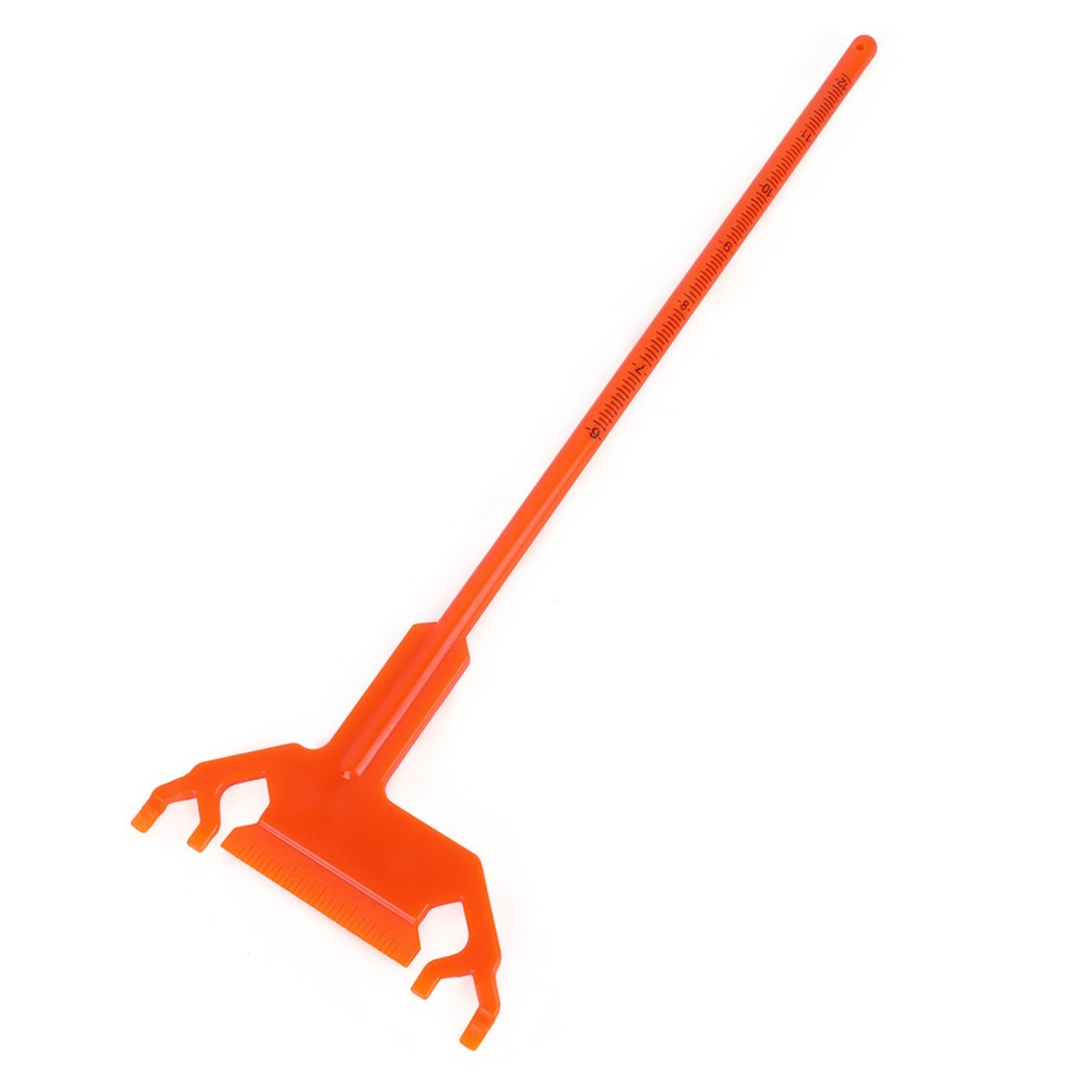

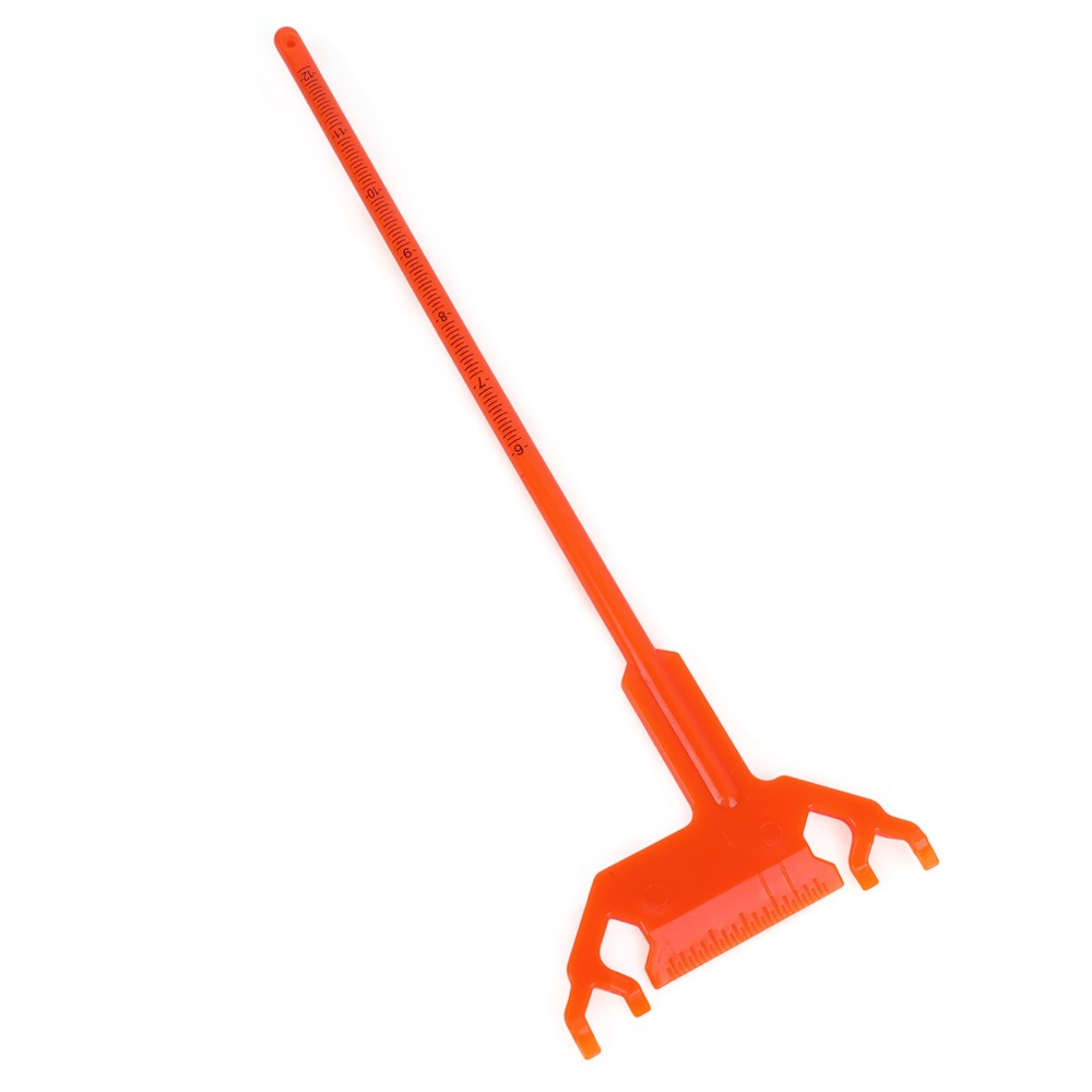

• Product Name: Precision T-Square (Bow Tuning Tool)

• Material: Durable Plastic

• Color: Orange (High-Visibility)

• Tool Dimensions: 33 × 10.4 × 1 cm

• Tool Weight: 37 grams

• Primary Uses: Brace Height Measurement, Nocking Point Setup, Limb Alignment Check

FAQ (Frequently Asked Questions):

Q1: How do I use this T-square to measure brace height?

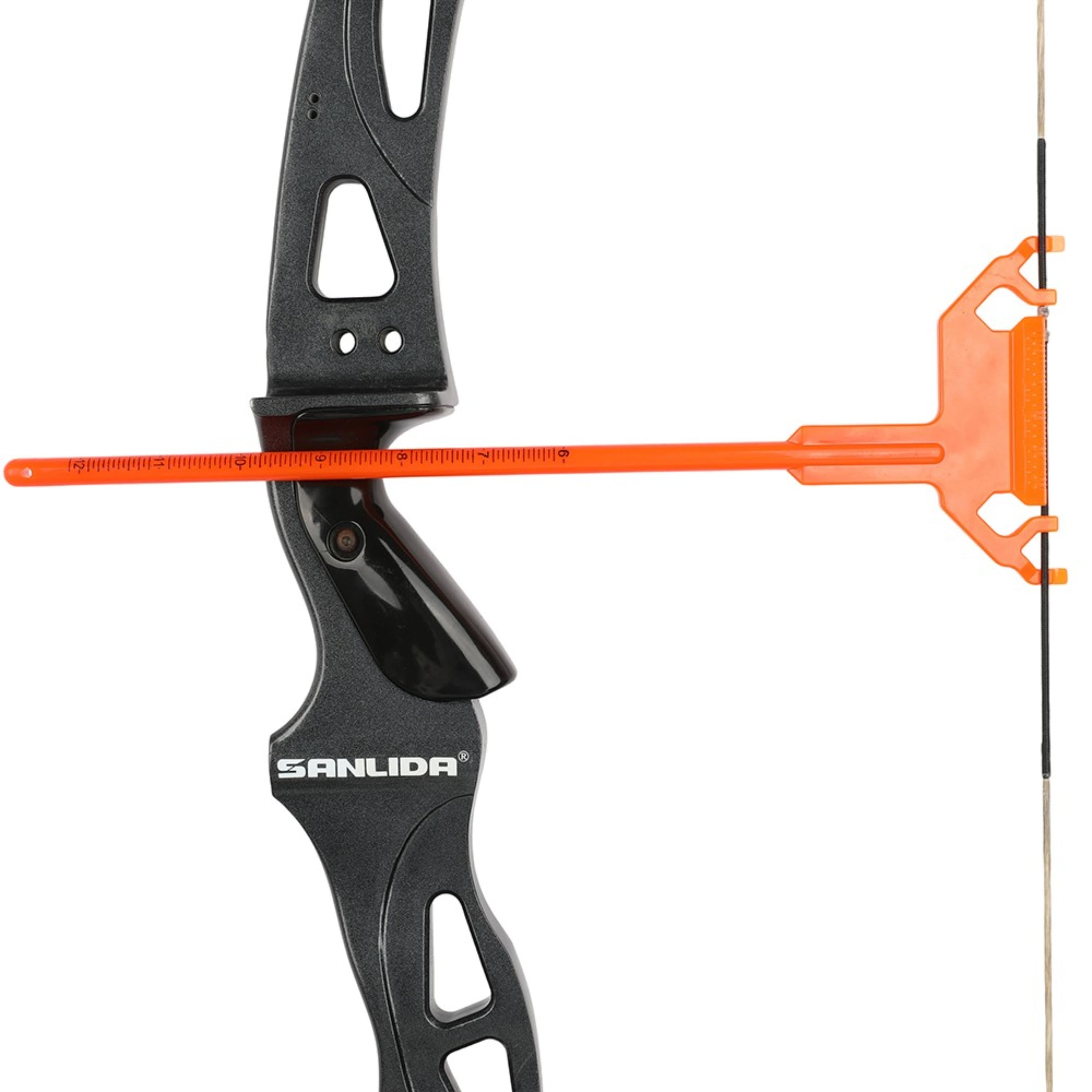

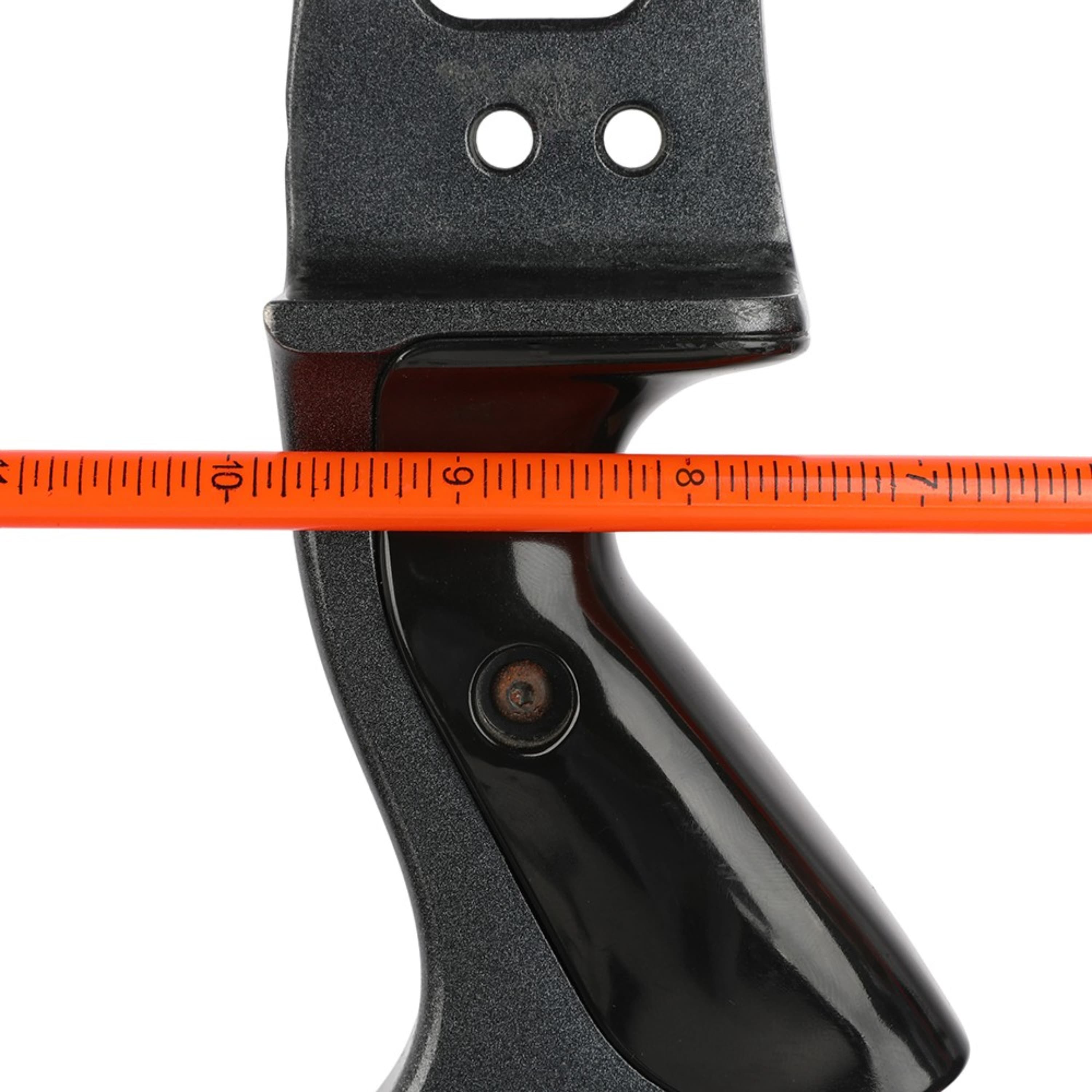

A: Place the crossbar (short arm) of the T-square firmly against the deepest part of the grip (the pivot point). Extend the ruler arm perpendicularly toward the string. The distance from the grip to the string, measured along the ruler, is your brace height.

Q2: Is it suitable for both recurve and longbows?
A: Yes, it is universally designed for any bow with a defined riser shelf (recurve bows) or a grip reference point (longbows) for measuring brace height and setting nocking points.

Q3: Why is a consistent nocking point important?
A: A consistently placed nocking point ensures your arrow leaves the string from the same position every shot. This is crucial for achieving vertical grouping consistency and proper arrow clearance.

Q4: Can a beginner use this tool effectively?
A: Absolutely. While tuning has nuances, this tool provides a simple, physical guide for key setup steps. It is highly recommended for beginners to learn proper initial setup with guidance from tutorials or experienced archers.

Q5: Does it come with instructions?
A: Basic usage is intuitive, but it is always recommended to consult a comprehensive bow tuning guide or video tutorial that explains the concepts of brace height, nocking point placement, and tiller tuning in detail for best results.
